Melamine Faced Chipboard (MFC): Pre-finished decorative structural panels produced by thermally fusing thermoset melamine-formaldehyde resin-impregnated decorative paper directly to both surfaces of an EN 312 P2 or P5 particle board core under 190°C to 215°C and 2.5 to 3.8 MPa hydraulic pressure. Meeting European Standard EN 14322 Class 3, MFC provides an impervious, non-porous surface with scratch resistance ≥ 2.0 N, stain resistance Rating 5 (resistant to acetone and organic acids), and 300+ synchronized woodgrain textures, serving as the dominant substrate for modern residential kitchens, commercial modular office furniture, and architectural wardrobe cabinetry.
1. The Anatomy of an MFC Panel: Multi-Layer Architecture
To understand the mechanical durability and structural stability of Melamine Faced Chipboard, one must examine its composite cross-section. An industrial-grade MFC panel is not merely a piece of wood with printed paper glued onto it; it is a multi-layer thermo-fused composite where paper fibers and thermosetting melamine polymers permanently cross-link with the surface wood micro-particles.
During short-cycle thermal pressing, the liquid melamine resin migrates to the outer surface, forming a 100% solid, non-porous transparent polymer film (approx. 20–40 microns thick). For heavy commercial or horizontal worktops, an optional α-cellulose overlay paper infused with microscopic corundum (aluminum oxide, $Al_2O_3$) crystals is added to elevate Taber abrasion wear resistance from Class 3A up to Class 4.
High-opacity bleached kraft or alpha-cellulose paper (70 to 120 g/m²) printed with high-resolution gravure or digital scanning patterns. Formulated with lightfast pigments achieving Blue Wool Scale ratings ≥ 6 to prevent yellowing or fading under indoor daylight and LED fixtures.
Precision 3-layer engineered wood core (EN 312 P2 for dry furniture or EN 312 P5 for moisture-resistant carcass applications). Graded wood chips provide a dense outer micro-particle skin (850–900 kg/m³) to resist surface telegraphing, over a lightweight interlocking core (600–640 kg/m³) optimized for fastener retention.
An identical decorative paper or weight-matched kraft balancing foil applied simultaneously to the reverse face. Symmetrical paper weight and resin flow prevent differential hygroscopic expansion, guaranteeing that the board remains dimensionally flat without bowing or warping across seasons.
2. Industrial Manufacturing: Resin Impregnation & Short-Cycle Pressing
The fabrication of Melamine Faced Chipboard involves two distinct chemical and mechanical phases: continuous paper impregnation and hydraulic short-cycle lamination.
Two-Stage Manufacturing Cycle
Resin Saturation & "B-Stage" Curing
Raw decorative paper rolls pass through automated Vits / Siempelkamp impregnation treaters. The paper is submerged into a chemical bath of aqueous melamine-formaldehyde resin modified with plasticizers, release agents, and wetting surfactants.
- Resin Content: 120% to 150% of raw paper dry weight.
- Flotation Dryers: Controlled drying to intermediate "B-stage" polymer state.
- Volatile Content: Precision regulated to 6.2% – 7.2% to ensure thermal flow without steam blistering.
Thermo-Fusion Bonding Under Isobaric Force
Calibrated raw particle boards are sandwiched between two impregnated sheets and fed into a Wemhöner or Hymmen single-opening short-cycle hydraulic press.
- Platen Temperature: 190°C to 215°C (374°F to 419°F).
- Hydraulic Pressure: 2.5 to 3.8 MPa (25 to 38 kg/cm²).
- Press Dwell Time: 14 to 28 seconds (depending on board thickness).
- Polymer Cross-Linking: Irreversible 3D thermoset polycondensation.
Why MFC Requires Zero Liquid Adhesives
A frequent misconception among procurement officers is that melamine paper is glued to particle board using liquid polyvinyl acetate (PVA) or contact cement. In reality, MFC contains zero wet adhesives. The melamine-formaldehyde resin impregnated directly inside the paper melts under 200°C press heat, flows into the microscopic surface pores of the wood chips, and instantly polymerizes into a rock-solid chemical bond. This eliminates adhesive line delamination, eliminates VOC solvents from glues, and produces an impeccably smooth surface free of telegraphing bubbles.
3. Surface Finishes, Gloss Levels & Synchronized Pore (EIR) Haptics
In architectural joinery and high-end cabinetry, optical realism and haptic tactile sensation define luxury. Cuzi Particle Board utilizes specialized etched and chrome-plated steel press caul plates to replicate organic timber, architectural concrete, and silky lacquer finishes:
| Surface Finish Code | Texture Family | Gloss Rating (at 60°) | Tactile Haptic Feel | Primary Application |
|---|---|---|---|---|

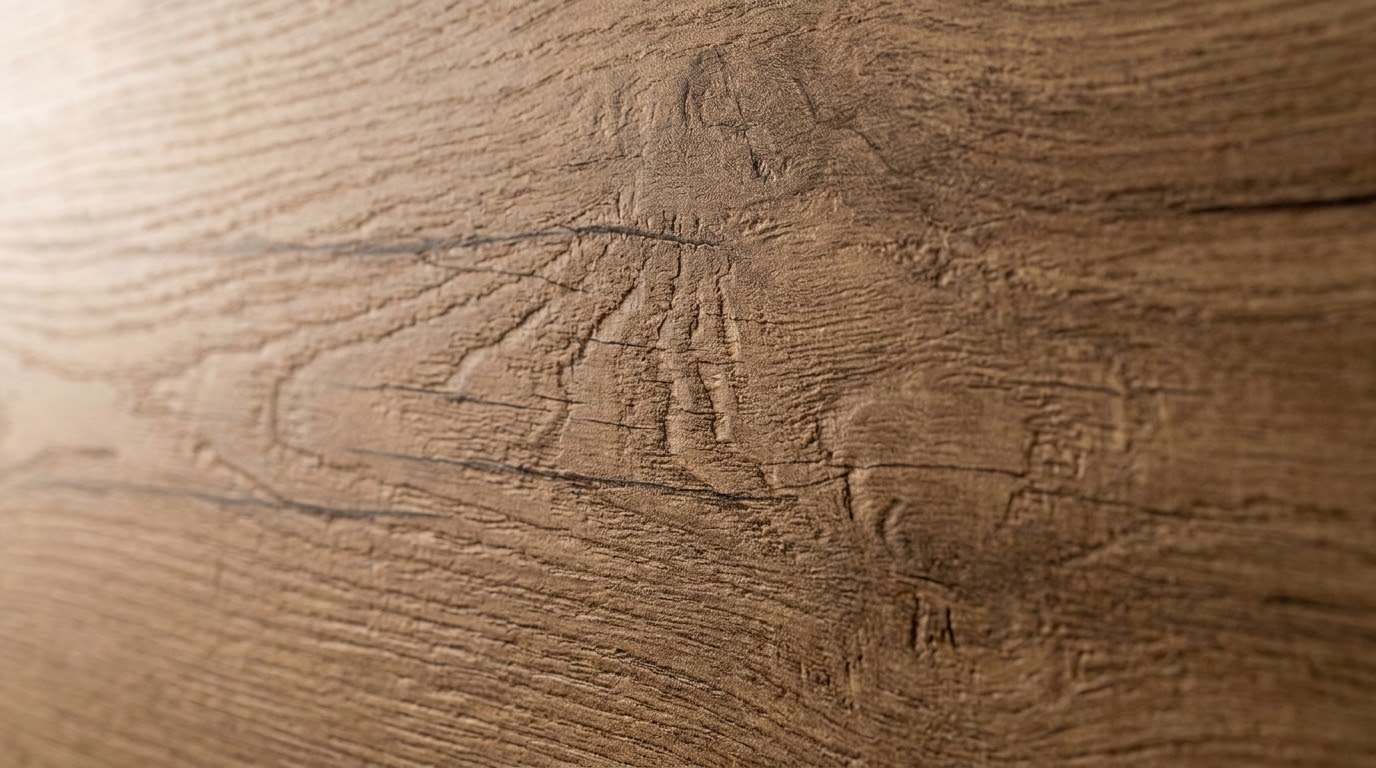

| EIR (Synchronized) | Embossed-in-Register Timber | 6 – 10 GU (Matte Sheen) | Deep woodgrain pores aligned 1:1 with visual grain | High-end kitchen door fronts & wardrobe panels |
| SM (Super Matte) | Velvet Soft-Touch | 2 – 5 GU (Ultra-Matte) | Silk-like, anti-fingerprint hydrophobic feel | Handleless modern kitchen carcasses & drawer fronts |
| NW (Natural Wood) | Linear Ash / Oak Ticking | 8 – 14 GU (Satin) | Fine directional timber pores | Office desks, commercial shelving & bookcase gables |
| ST (Stone & Slate) | Mineral Concrete Stucco | 4 – 8 GU (Textured) | Rough masonry, travertine & industrial cement | Kitchen islands, accent feature walls, reception desks |
| HG (High Gloss) | Mirror Lacquer Finish | ≥ 90 GU (Reflective) | Glass-smooth high-reflectance piano gloss | Contemporary wardrobe sliders & retail display fixtures |
Technical Focus: Embossed-in-Register (EIR) Optical Camera Alignment
Standard textured boards press random wood patterns onto printed paper, creating cognitive dissonance when a visible knot feels completely flat. Our Wemhöner EIR press lines utilize high-resolution digital CCD cameras to scan crosshair fiducial marks on the printed paper, micro-adjusting the position of the etched steel plate within ±0.5 mm before the hydraulic ram closes. The physical depression precisely matches the visual timber growth ring, knot fissure, or cathedral arch.
4. Performance Standards: European EN 14322 & EN 14323 Mechanical Testing
Unlike wet-painted panels that chip easily, or paper foils that peel under moisture, Melamine Faced Chipboard is tested against stringent European laboratory standards defined in EN 14322 (specifications) and EN 14323 (test methods).
| Test Parameter | EN 14323 Test Method | EN 14322 Class 3 Standard | Cuzi Particle Board Factory Value |
|---|---|---|---|
| Scratch Resistance | Diamond stylus under increasing radial load | ≥ 1.5 N (Class 3A) / ≥ 2.0 N (Class 3B) | ≥ 2.2 N to 2.5 N |
| Stain Resistance | 16-hour surface contact (acetone, coffee, red wine) | Rating ≥ 4 (minor gloss change) | Rating 5 (Zero stain / zero mark) |
| Dry Heat Resistance | Metal container filled with oil at 70°C for 20 min | Rating 4 (no cracking) | Rating 5 (No visible change) |
| Resistance to Steam | Direct exposure to boiling water steam for 1 hour | Rating 4 (no blistering) | Rating 4 – 5 (Zero delamination) |
| Cracking Resistance | Thermal shock cycling between 20°C and 70°C | Class 3 (no micro-cracks) | Class 3 (Impeccable stability) |
| Lightfastness (UV Aging) | Xenon arc light exposure (EN ISO 4892-2) | Contrast ≥ Blue Wool Scale 6 | Blue Wool Scale ≥ 6 to 7 |
| Surface Soundness (Bond) | Tensile dolly pull-off (EN 311) | ≥ 0.80 N/mm² | ≥ 1.10 N/mm² |
5. Factory Fabrication: CNC Cutting, PCD Tooling & Edge Banding
Because cured melamine resin is extremely hard and brittle, cutting MFC requires proper tooling geometries to prevent chipping along the bottom surface. Furthermore, because the raw particle board core is porous, perimeter edge sealing is essential for long-term structural longevity.
CNC Beam Saw Geometry
- Conical Scoring Saw: 120–125 mm diameter, rotating at 8,500 rpm in climb-cut direction, pre-scoring 1.5mm deep to prevent bottom tear-out.
- Main Blade Geometry: Polycrystalline Diamond (PCD) with Trapezoidal-Flat Tooth (TCG) profile, 300–350 mm, 54–72 teeth.
- Feed Rate: 25 to 35 m/min at 4,500 rpm for crisp, chip-free edges.
Fastener & Hinge Boring
- Hinge Pocket Boring: 35mm carbide-tipped Forstner drill bits operating at 3,500 to 4,500 rpm with step-feed plunges.
- System 32 Shelf Pins: 5mm brad-point dowel drills with center points preventing melamine rim splintering.
- Assembly Screws: Pre-drill pilot holes (2.5mm for 4.0mm confirmat screws) to prevent core splitting.
PUR vs. EVA Edge Banding
- EVA (Standard): Thermoplastic hot-melt, cost-effective for dry office furniture, but vulnerable to steam above 75°C.
- PUR (Waterproof): Reactive polyurethane forming a chemical cross-link. Heat-proof to 140°C, zero water vapor absorption, invisible < 0.1mm micro-joint.
- Tape Thickness: 0.4mm for internal shelves; 1.0mm–2.0mm ABS for high-impact cabinet doors.
6. Commercial Economics: MFC vs. MDF, Solid Wood, and HPL
Why does Melamine Faced Chipboard dominate over 80% of global commercial cabinetry production? The answer lies in total installed cost, logistical weight efficiency, and zero factory wet-painting overhead:
| Material Substrate | Material Cost ($/m²) | Finishing Labor Required | Density & Weight | Container Shipping Capacity | Best Commercial Use |
|---|---|---|---|---|---|
| Melamine Faced Chipboard (MFC) | Baseline ($) | Zero (Pre-finished) | 650 – 680 kg/m³ | ~1,450 – 1,600 m² (24 MT 40ft HQ) | Cabinet carcasses, wardrobes, desks, retail fixtures |
| Melamine MDF | +18% to +25% | Zero (Pre-finished) | 740 – 800 kg/m³ | ~1,150 – 1,250 m² (Weight-limited) | 3D routed cabinet doors, contoured mouldings |
| HPL on Raw Particle Board | +45% to +65% | High (Secondary gluing press) | 700 – 720 kg/m³ | ~1,200 – 1,300 m² | High-traffic retail counters, hospital worktops |
| Natural Veneered Board | +120% to +180% | Very High (Staining, PU clearcoat) | 670 – 700 kg/m³ | ~1,300 m² | Luxury executive furniture, hotel lobbies |
| Solid Sawn Hardwood (Oak) | +300% to +500% | Extremely High (Planing, sanding, coating) | 720 – 780 kg/m³ | Low (Prone to seasonal movement) | Artisan furniture, decorative architectural trim |
Request Physical MFC Decor Swatches & Engineering Dossier
Evaluate 300+ synchronized woodgrain decors, velvet super matte surfaces, and PUR edge-banded sample panels. Direct factory wholesale containerload pricing dispatched worldwide.
Frequently Asked Questions (B2B Technical Q&A)
Engineering answers prepared by Cuzi Particle Board surface materials and joinery specialists.
Melamine Faced Chipboard (MFC), also known as melamine particle board or pre-laminated chipboard, is an engineered decorative panel manufactured by thermally fusing decorative paper impregnated with thermosetting melamine-formaldehyde resin onto both faces of a calibrated raw particle board core. The fusion occurs in automated short-cycle presses under temperatures of 190 deg C to 215 deg C and hydraulic pressures of 2.5 to 3.8 MPa. Under heat and pressure, the resin liquefies, penetrates the wood fiber surface, and cross-links into a non-porous, permanent polymer matrix requiring zero wet adhesives or post-curing.
MFC utilizes a particle board substrate (density ~650-680 kg/m3) thermally fused with low-pressure melamine paper (LPM) in a single short-cycle pressing step, making it the most cost-effective, lightweight panel for flat cabinet carcasses and shelving. Melamine MDF utilizes fine wood fiber (density ~740-800 kg/m3), offering smooth edges suitable for 3D routing and profiling but at 15-25% higher cost and weight. HPL consists of multiple kraft paper sheets bonded with phenolic resin under high pressure (7-10 MPa) into a 0.6-1.0mm sheet, which must subsequently be glued to a core substrate, providing extreme impact resistance for horizontal high-traffic countertops.
Embossed-in-Register (EIR) is a state-of-the-art tactile pressing technology where the micro-engraved three-dimensional texture of the hardened steel press plate matches the printed grain, knots, and pores of the decorative melamine paper with optical alignment accuracy within +/- 0.5 mm. High-resolution CCD cameras scan fiducial marks on the paper, automatically adjusting hydraulic press platen alignment before closing, producing a sensory texture indistinguishable from natural sawn hardwood.
EN 14322 sets international performance standards for melamine-faced boards. Cuzi Particle Board MFC panels meet Class 3 commercial ratings: scratch resistance >= 2.0 N (measured via diamond stylus under EN 14323), stain resistance Rating 5 (zero visible staining after 16 hours of contact with acetone, ethanol, coffee, wine, and cleaning agents), cracking resistance Class 3 under 70 deg C thermal shock, and lightfastness >= 6 on the Blue Wool Scale.
Particle board panels are hygroscopic composite structures. If different paper weights, resin contents, or surface textures are applied to opposite faces, the unbalanced hygroscopic tension and asymmetric thermal cooling cause the panel to warp or cup. Cuzi Particle Board strictly matches top and bottom paper basis weights (e.g., 85 g/m2 decorative face balanced by an exact 85 g/m2 balancing sheet or identical decorative reverse) to ensure perfect optical flatness across full 4x8 ft and 6x9 ft sheets.
To achieve chip-free cuts on brittle melamine surfaces, CNC horizontal beam saws require a dual-blade configuration: a conical scoring saw blade (120-125 mm diameter, rotating reverse-climb at 8,000-9,000 rpm) that scores the bottom melamine face 1.5 to 2.0 mm deep, followed by a primary Polycrystalline Diamond (PCD) saw blade (300-350 mm, Trapezoidal-Flat Tooth TCG geometry, running at 4,500 rpm with a 25-35 m/min feed speed).
EVA (Ethylene-Vinyl Acetate) is a thermoplastic glue that remelts when exposed to temperatures above 70-80 deg C and degrades if subjected to prolonged steam or moisture immersion, creating a visible 0.2-0.3 mm glue line. PUR (Polyurethane Reactive) chemically reacts with ambient humidity to form an irreversible, cross-linked structural thermoset bond. PUR delivers an invisible micro-glue line (< 0.1 mm), thermal resistance from -40 deg C to +140 deg C, and 100% waterproof immersion resistance essential for kitchen sink base cabinets and bathroom vanities.
Yes. While standard furniture carcasses utilize an EN 312 P2 dry-grade core, high-humidity applications (kitchen carcasses, vanity units, laundry cabinets) should be laminated over an EN 312 P5 moisture-resistant green core particle board bonded with Melamine-Urea-Formaldehyde (MUF) resin. This configuration limits 24-hour water thickness swelling to <= 10% (versus <= 14% for P2) and maintains high internal bond strength (>= 0.45 N/mm2) even after cyclic boiling and drying.
