Particle Board vs. MDF: Particle board (chipboard / MFC) is 15% to 25% more economical per cubic meter and 10% to 15% lighter (~650–700 kg/m³ vs. ~740–820 kg/m³) than MDF. This weight difference maximizes container shipping payload by up to 100+ sheets per 40ft High Cube container and minimizes long-term cabinet shelf sagging under creep loads. MDF features a homogeneous fine-fiber matrix that enables 3D CNC profile routing (Shaker door fronts) and direct wet lacquer painting. For all flat cabinet carcasses, shelving, and desktops, Melamine Faced Chipboard (MFC) is the undisputed global standard.
Executive Summary for Procurement & Production Directors
Particle Board (Chipboard) is approximately 15% to 25% more economical than MDF and is 10% to 15% lighter in weight (~670 kg/m³ vs ~750-800 kg/m³), saving significant shipping costs and easing furniture handling. It offers superior dimensional stability for large flat cabinet carcasses and shelving. MDF is denser, features homogeneous fine fiber composition, and allows 3D profile routing (Shaker doors, decorative grooves) and direct wet spray-painting. For modular cabinet carcasses, wardrobe boxes, and desktops, Melamine Faced Chipboard (MFC) is the undisputed industry standard.
1. Technical Differences in Fiber Composition & Manufacturing Chemistry

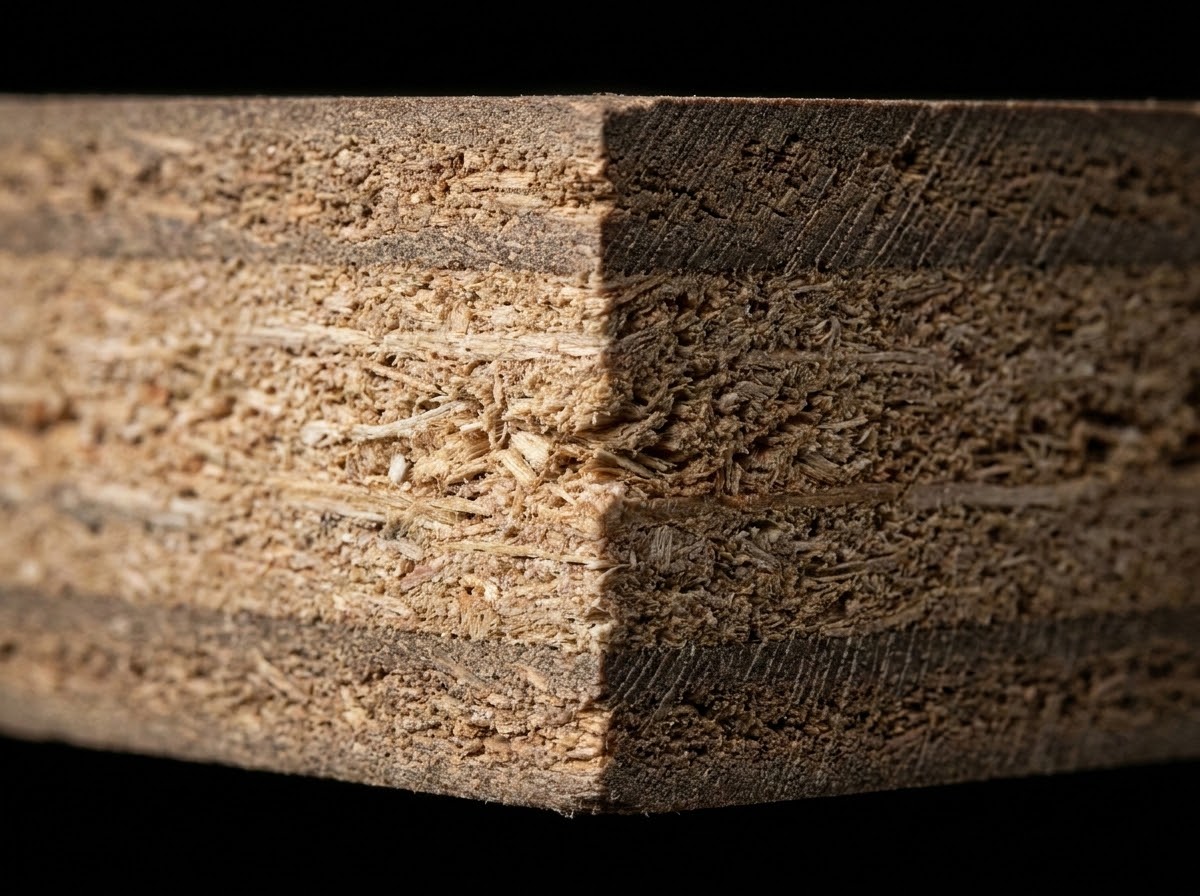

Particle Board is constructed from graded pine and selected hardwood timber chips, shavings, and sawdust flakes bonded under high pressure with synthetic thermosetting resins (MUF / UF). Cuzi Particle Board utilizes an engineered 3-layer density gradient: micro-fine particles on both outer surfaces for optimal smoothness, sandwiching larger, interlocked structural flakes in the core to maximize mechanical fastener retention.
MDF (Medium Density Fiberboard) breaks whole wood logs down into individual lignocellulosic fibers using high-pressure steam thermal refiners (defibrators). The fibers are combined with wax and synthetic resin before being pressed into a solid, isotropic panel. MDF features a uniform density from surface to core, but lacks the mechanical interlocking flake structure present in particle board.
2. Head-to-Head Mechanical, Weight & Financial Comparison Matrix
Engineering parameter breakdown comparing furniture-grade particle board (EN 312 P2) against standard interior Medium Density Fiberboard (EN 622-5 MDF):
| Evaluation Parameter | Industrial Particle Board (P2 / MFC) | Medium Density Fiberboard (MDF) | Manufacturing & Practical Consequence |
|---|---|---|---|
| Wholesale Cost Index | 100 (Most Economical Base) | 120 – 135 (15% to 35% Higher) | Particle board yields 5,000 to 5,000 cost savings per 10 FCL containers |
| Nominal Density | 650 – 700 kg/m³ (Lighter Core) | 740 – 820 kg/m³ (Dense & Heavy) | Particle board reduces flat-pack furniture package weight by 12% to 15% |
| Ocean Freight Payload (40'HQ) | Up to 800 sheets (18mm / 26.2 MT) | ~680 to 720 sheets (Hits 26.5 MT cap) | Particle board ships ~80–100 more sheets per container, reducing ocean freight per m³ |
| 3D CNC Profile Routing | Flat panels & drilled holes only | Exceptional 3D Shaker profile routing | MDF required for grooved fronts; particle board for flat carcass components |
| Thermal Melamine Lamination | Outstanding (Primary Global Substrate) | Good, but costly substrate choice | Melamine fuses directly into particle board resin matrix without pre-priming |
| Edge Screw Splitting Resistance | High (Flakes interlock radially) | Prone to edge mushrooming & splitting | MDF requires larger pilot holes to avoid splitting along fiber press plane |
| Respirable Dust During CNC Saws | Heavier granular chips (Clean extraction) | Fine airborne dust (< 10 microns) | Particle board prolongs baghouse filter life and reduces respiratory risk |
| Long-Term Creep Deflection (Sag) | Moderate creep; stiff at 600–800mm | Higher permanent creep sag under load | MDF shelves sag permanently under heavy book loads much faster than chipboard |
| Direct Wet Paint Finishing | Requires thick edge band & primer | Direct spray lacquer on edges & faces | MDF is superior for painted crown moldings, baseboards, and spray-lacquered doors |
3. Engineering Deep-Dive: Fasteners, Creep Deflection & Factory Dust
🔩 Edge Fastener Retention & Splitting
MDF is formed of compressed parallel fibers. Driving a confirmat screw into an MDF edge causes the wedging action of the threads to pry apart the laminated fiber planes, causing edge 'mushrooming' or split gables. In contrast, particle board's randomly oriented 3D flakes interlock around the screw threads, holding edge screws with pull-out forces exceeding 900 N without edge swelling.
📐 Long-Term Viscoelastic Creep
While MDF boasts a higher initial flexural modulus, it exhibits high viscoelastic creep under continuous dead weight. In humid conditions (RH > 65%), an 18mm MDF shelf loaded with dishes will experience permanent mid-span deflection twice as fast as an 18mm P2 or P5 particle board shelf. For library shelving and kitchen pantries, particle board delivers superior long-term planarity.
💨 Factory Air Filtration & Dust Load
Cutting MDF on high-speed beam saws creates microscopic, powdery wood flour that remains suspended in factory ambient air, blinding collector filter cartridges and demanding specialized pulse-jet cleaning systems. Particle board machines into heavier wood shavings that drop swiftly into dust extraction hoods, reducing factory filter maintenance downtime by 40%.
🚚 E-Commerce Parcel Weight Thresholds
For direct-to-consumer (D2C) flat-pack furniture retailers, parcel delivery carriers impose strict weight surcharges above 25 kg (55 lbs) or 30 kg (70 lbs). Using 18mm particle board instead of MDF frequently keeps a flat-pack bookcase or bedside table beneath carrier dimensional weight tiers, saving 2 to 5 in single-parcel freight surcharges.
4. The 80/20 Hybrid Material Strategy: How Tier-1 Furniture Manufacturers Scale
Global retail furniture leaders (such as IKEA, Nobilia, and Howdens) do not choose between particle board and MDF as an either/or dilemma. Instead, they deploy an optimized 80/20 hybrid engineering framework:
- 🏢 Use Melamine Faced Chipboard (MFC) for 80% of Volume: All structural cabinet gables, base bottoms, stretchers, back rails, interior adjustable shelves, and drawer boxes. This captures maximum cost margins, minimizes container ocean freight, and optimizes automated CNC line boring speed.
- 🎨 Use MDF for the remaining 20% of Volume: 3D routed Shaker-style cabinet door faces, CNC carved drawer frontals, curved architectural valances, and parts requiring wet polyurethane spray painting.
Request Mixed Container Shipments (MFC + MDF) Direct from Mill
Cuzi Particle Board supplies both calibrated furniture-grade raw particle board, melamine faced chipboard (MFC), and commercial MDF panels in consolidated full container loads. Contact our international sales department to balance your factory production inventory and request physical comparison sample sets.
Frequently Asked Questions (B2B Technical Q&A)
Common procurement and fabrication questions evaluated by Cuzi Particle Board engineering staff.
Particle Board (Chipboard) is approximately 15% to 25% more economical per cubic meter than Medium Density Fiberboard (MDF). Furthermore, because particle board is 10% to 15% lighter (~670 kg/m³ vs ~760–800 kg/m³), factories can ship significantly more panels per ocean container without exceeding highway gross weight limits, reducing total landed cost.
European cabinet manufacturers specify MFC for over 85% of carcass construction because particle board provides superior longitudinal dimensional stability, high stiffness-to-weight ratio, and excellent screw retention in flat planes without warping. MDF is reserved mainly for profiled cabinet door faces and painted moldings.
Yes. Particle board edges exhibit superior resistance to splitting under confirmat screw driving compared to MDF. MDF consists of tightly packed fine wood fibers that easily delaminate and 'mushroom' along the edge if pilot holes are slightly undersized. Particle board core flakes interlock in three dimensions, absorbing radial screw thread expansion without edge cracking.
MDF is necessary when 3D CNC profile routing is required (such as recessed Shaker door panels, grooved cabinet frontals, or decorative crown moldings), and when panels will be finished with direct wet spray-paint or high-pressure laminate post-forming, which requires a homogenous fiber edge without flake voids.
Machining MDF produces ultra-fine respirable wood dust (<10 microns) that rapidly clogs baghouse dust collectors and poses occupational respiratory hazards requiring specialized high-velocity dust hoods. Particle board cuts into heavier granular chips that fall cleanly into collection ducts, reducing factory maintenance downtime and filter cleaning cycles by over 40%.
A standard flat-pack 2-door wardrobe made of 18mm particle board weighs approximately 52 kg, whereas the exact same unit built from 18mm MDF weighs approximately 62 kg (+19% heavier). This weight reduction makes particle board furniture easier for end consumers to carry and significantly reduces parcel courier shipping costs for e-commerce furniture retailers.
While MDF has a slightly higher initial Modulus of Elasticity (MOE ≥ 2,500 N/mm² vs 2,200 N/mm² for particle board), MDF suffers from significantly higher long-term viscoelastic creep under permanent loads. In humid environments, an MDF shelf will sag permanently under heavy book loads much faster than a properly supported 18mm or 25mm particle board shelf.
Yes. Cuzi Particle Board provides consolidated mixed-FCL shipments, allowing furniture manufacturers to load 80% volume of Melamine Faced Chipboard (for cabinet carcasses and shelving) alongside 20% volume of raw or primed MDF (for Shaker door profiles and moldings) in a single 40ft High Cube container.
